Reference deliveries

Wire rope

Wire rope delivery

Brownfield Oil Tools recently delivered 20,000 ft (~6,000 m) of wire rope (braided line) to a European operator. The equipment had the following specifications:

• 3/16" braided line 1×19 (12+6+1)
• Galvanized (class B)
• Formed, tensile strength 1960 N/mm²
• Diameter 4.76 mm
• Minimum breaking load 2495 kgf (5500 lbf)
• Weight 0.111 kg/m, length 6000 m / 1 drum

Pressure control

Wireline valve delivery

Brownfield Oil Tools recently delivered a manual wireline valve (BOP) to a European operator. The equipment had the following specifications:

• Single manual BOP, 10,000 psi working pressure
• With equalizing valve
• With multiline rams for 3/16" braided line & 0.092" slickline
• With 3.00" min. ID, with OTIS 5"-4 type pin top × box down connection
• With pressure test certificate

Artificial lift

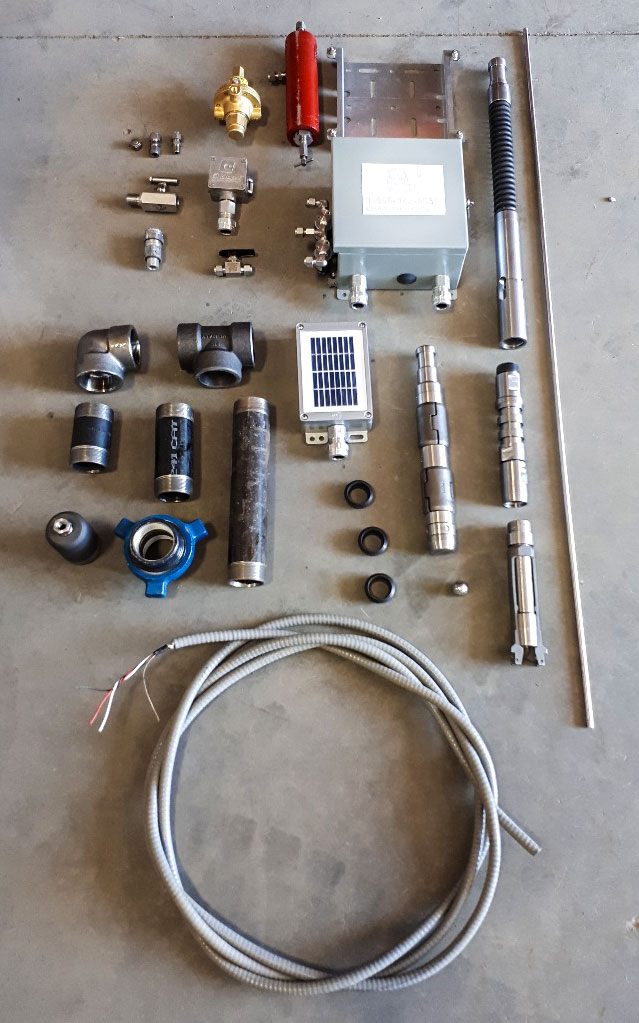

Plunger lift delivery

Brownfield Oil Tools recently delivered plunger lift equipment for 3 wells to a European operator. The delivery included the following equipment:

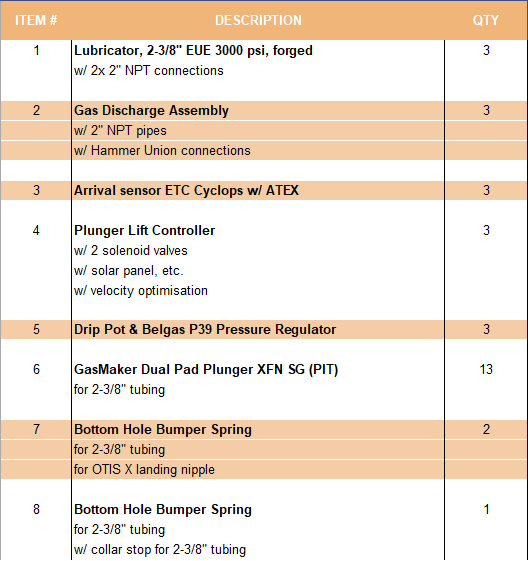

Equipment delivered

Item	Description	Qty
1	Lubricator, 2-3/8" EUE 3000 psi, forgedw/ 2× 2" NPT connections	3
2	Gas Discharge Assemblyw/ 2" NPT pipes; w/ Hammer Union connections	3
3	Arrival sensor ETC Cyclops w/ ATEX	3
4	Plunger Lift Controllerw/ 2 solenoid valves; w/ solar panel, etc.; w/ velocity optimisation	3
5	Drip Pot & Belgas P39 Pressure Regulator	3
6	GasMaker Dual Pad Plunger XFN SG (PIT)for 2-3/8" tubing	13
7	Bottom Hole Bumper Springfor 2-3/8" tubing; for OTIS X landing nipple	2
8	Bottom Hole Bumper Springfor 2-3/8" tubing; w/ collar stop for 2-3/8" tubing	1
