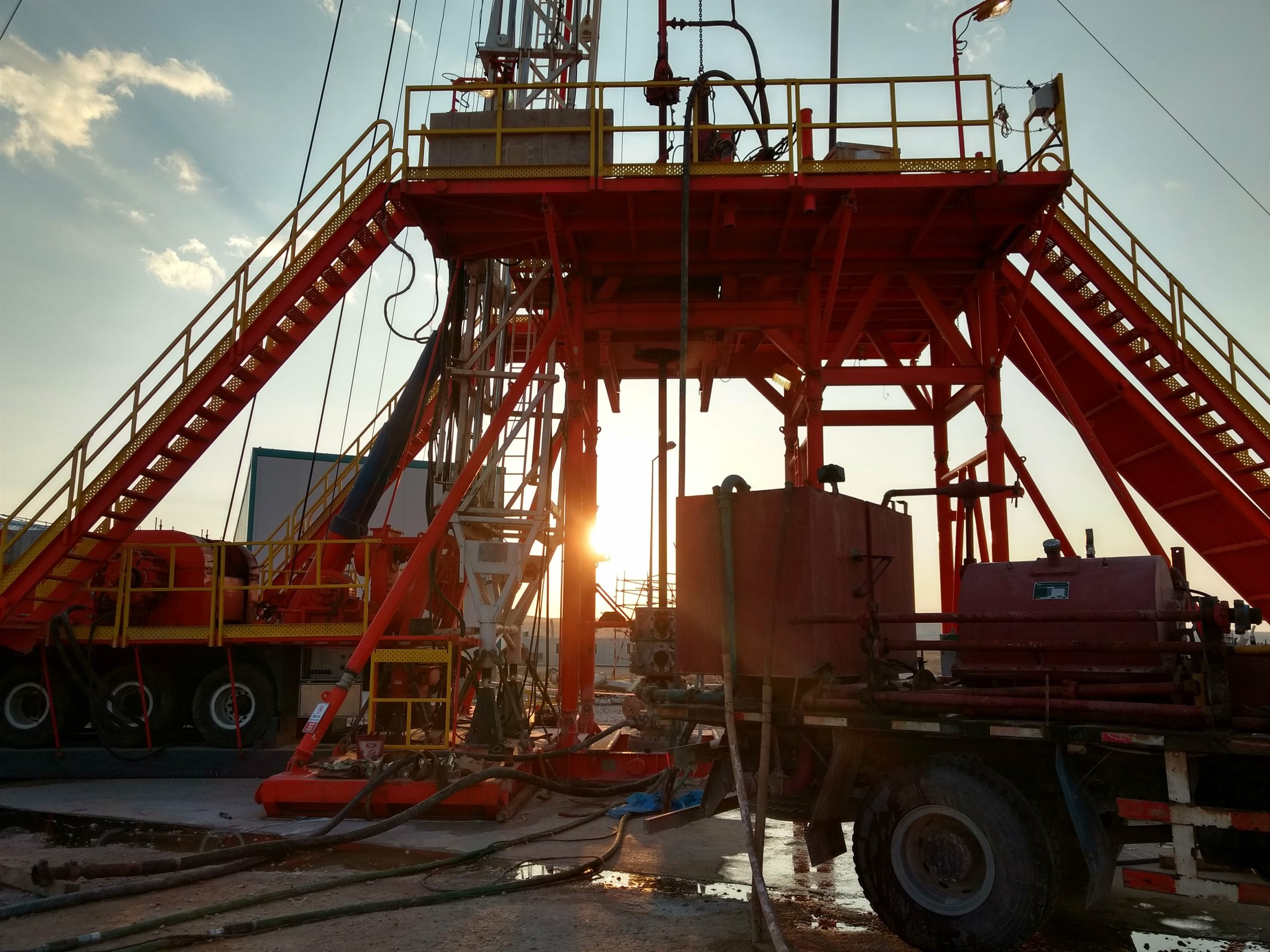

Workover rig at sunset on an oilfield wellsite

Brownfield Oil Tools · Slickline Tools

Slickline tools & pressure control equipment

Your source for slickline tools and pressure control equipment: sliding sleeves, landing nipples, lock mandrels, pulling tools and wireline valves (BOPs).

Request a quote View products
Wireline valves
Up to 10,000 psi
Service
H2S
Range
Flow control & running tools

Product range

Available equipment

Flow control equipment, running, setting and pulling tools, and pressure control equipment for slickline operations.

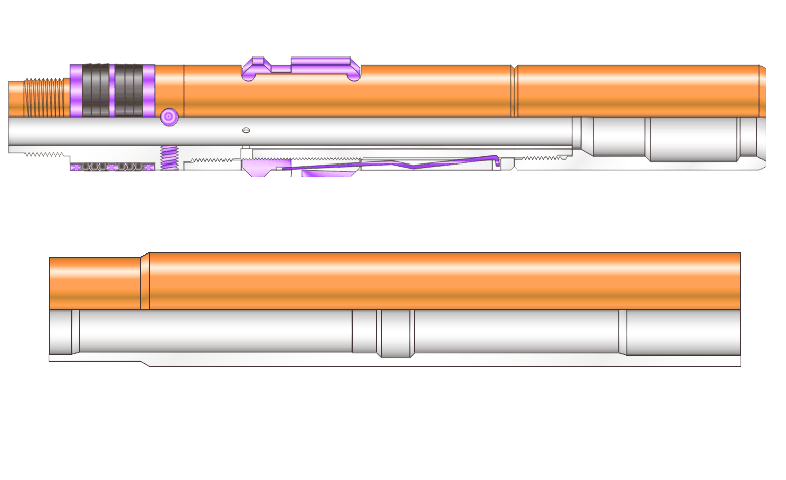

  • Render of flow control equipment: sliding sleeve and landing nipple

    Flow control equipment

    Variety of sliding sleeves, landing nipples, lock mandrels and more available to meet your demands.

    Examples: sliding sleeves, X & XN nipples, BX & BXN lock mandrels

    View range

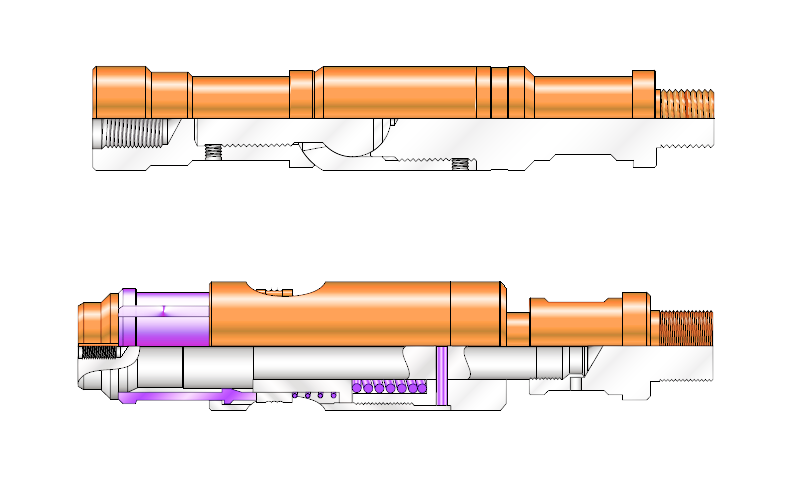

  • Render of running and pulling tools

    Running, setting & pulling tools

    Variety of running, setting, pulling tools and more available to meet your demands.

    Example: GS pulling tool

    View range

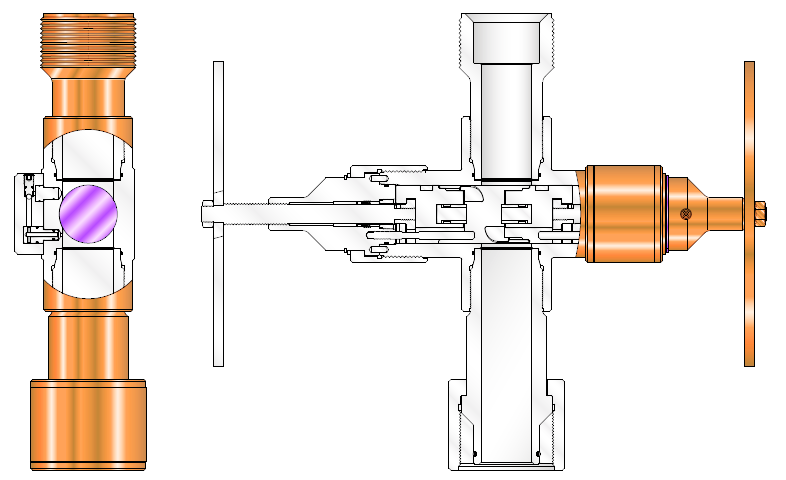

  • Render of a wireline valve (BOP)

    PCE – Pressure control equipment

    A wide range of wireline valves and blowout preventers available, manual and hydraulic operated.

    Example: wireline valves (BOPs)

    View range

PCE – Pressure control equipment

Wireline valves (BOPs)

Hydraulic models with mono, single or dual ram options, or single ram manual models. All hydraulic models can close the rams manually; hydraulic models are recommended when frequent use is anticipated or where safety concerns dictate remote operation.

Up to 10,000 psi working pressure · H2S service

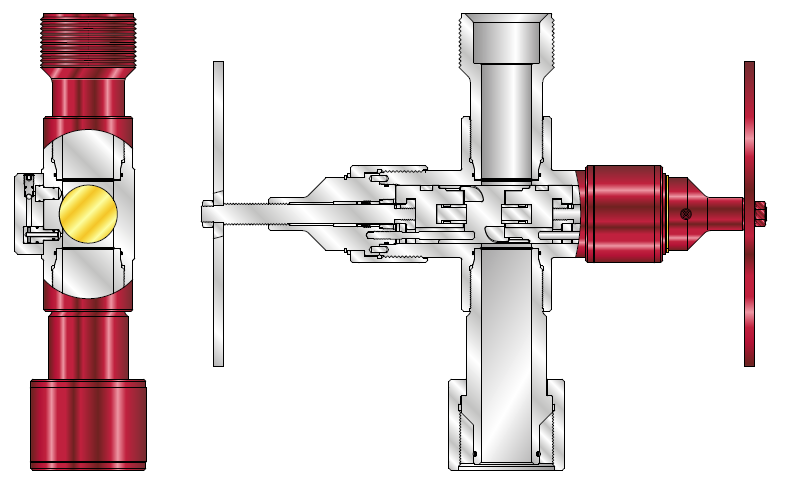

Render of a wireline valve (BOP) with manual and hydraulic ram actuators
Wireline valve (BOP) Hydraulic or manual

Features

  1. 01Rugged forged mono-block style bodies rated up to 10,000 psi working pressure, H2S service
  2. 02All polymer vee packing stack improves service life
  3. 03Quick union connections with integral bolt-on flanged connections for ease of interchangeability
  4. 04Indicator rods to show ram positions
  5. 05Inner and outer ram seals are interchangeable with most leading manufacturers
  6. 06Multi-size rams are available
  7. 07Cutter rams are available

Models and options

  • Hydraulic mono ram
  • Hydraulic single ram
  • Hydraulic dual ram
  • Manual single ram
  • Multi-size rams
  • Cutter rams
Reference: single manual BOP, 10,000 psi, delivered to a European operator
Request a quote Product details

Specifications

Product data

Flow control and running tools with specification tables on each product page.

Engineering drawing of a BX lock mandrel

Flow control equipment

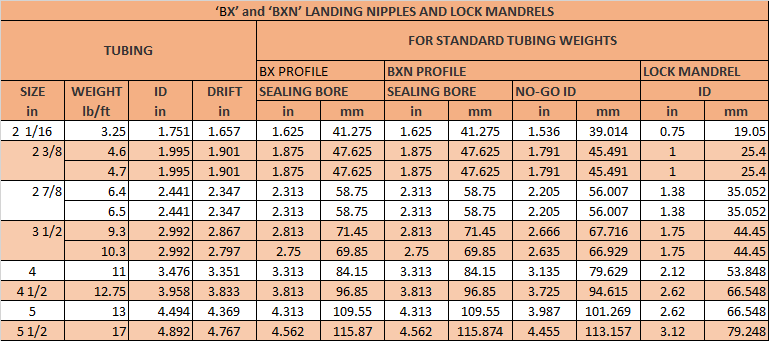

BX & BXN lock mandrels

  • Holds pressureFrom above and below
  • SettingTwo wireline trips
  • ConversionBX ↔ BXN keys

Positive blank-off lock mandrels for X and XN nipples, holding pressure from above and below.

  • Keys with square locking shoulders for selective BX nipple profiles
  • Sets plugs, instrument hangers and downhole chokes
Product details Specifications
Engineering drawing of the GS pulling tool

Running, setting & pulling tools

GS pulling tool

  • EngagementSit-down weight
  • ReleaseJar down, shear pin
  • ConversionGR with GU adapter

Pulling / running tool for standard internal fishing necks, released by downward jarring.

  • Locates in standard internal fishing necks
  • Finger grip for manual release at surface
Product details Specifications

Reference deliveries

Recent deliveries

Wire rope, a wireline valve and plunger lift equipment delivered by Brownfield Oil Tools to European operators. All references

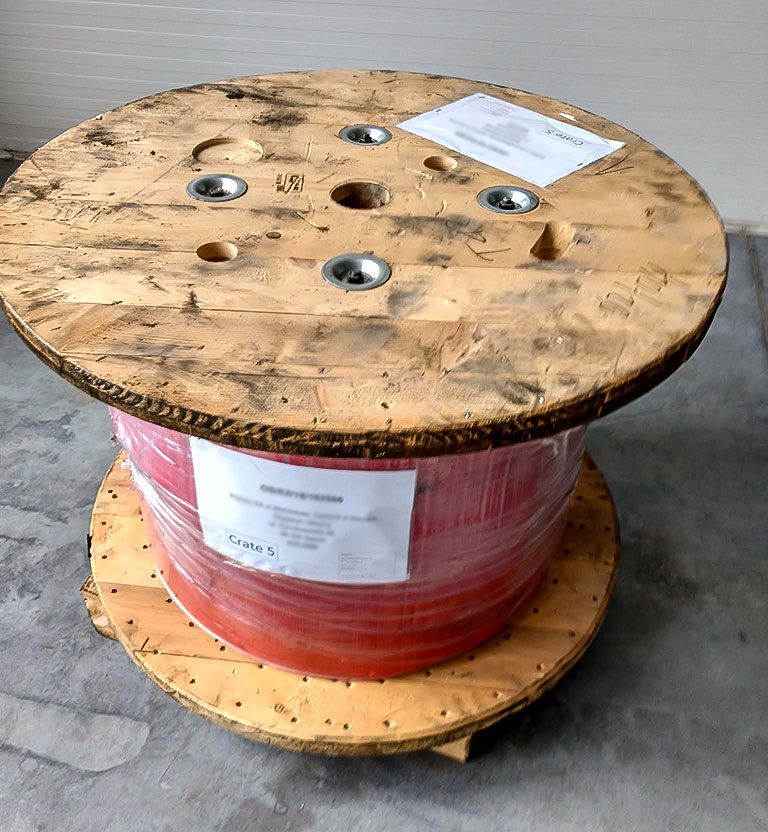

  • Drum of 3/16" braided wire rope, packed for shipping

    Wire rope

    Wire rope delivery

    20,000 ft (~6,000 m) of 3/16" braided line for a European operator.

    • 3/16" braided line 1×19 (12+6+1)
    • Formed, tensile strength 1960 N/mm²
    • Minimum breaking load 2495 kgf (5500 lbf)
    Delivery details

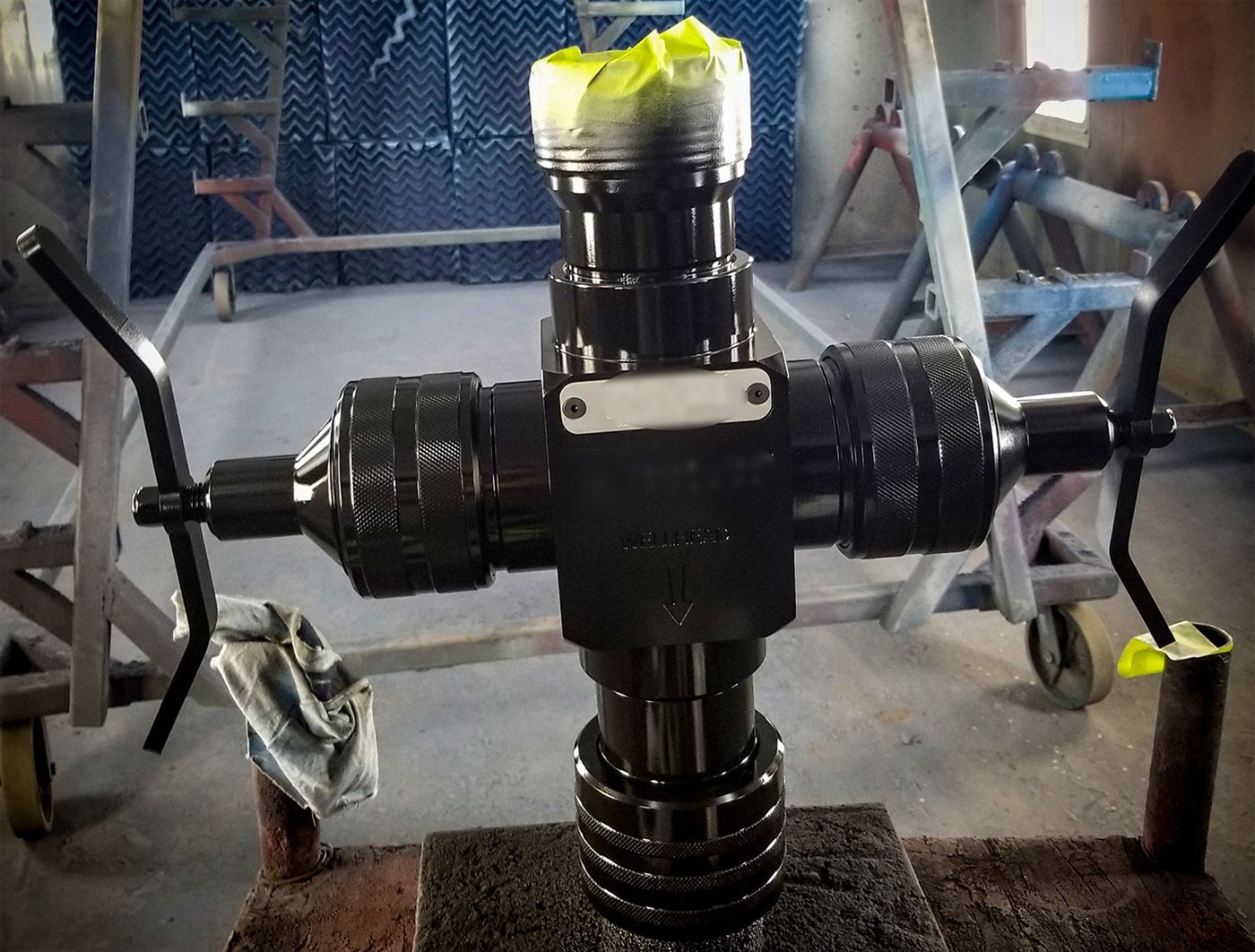

  • Single manual wireline valve (BOP) with equalizing valve, in the workshop

    Pressure control

    Wireline valve delivery

    A single manual BOP, 10,000 psi working pressure, for a European operator.

    • With equalizing valve
    • With multiline rams for 3/16" braided line & 0.092" slickline
    • With pressure test certificate
    Delivery details

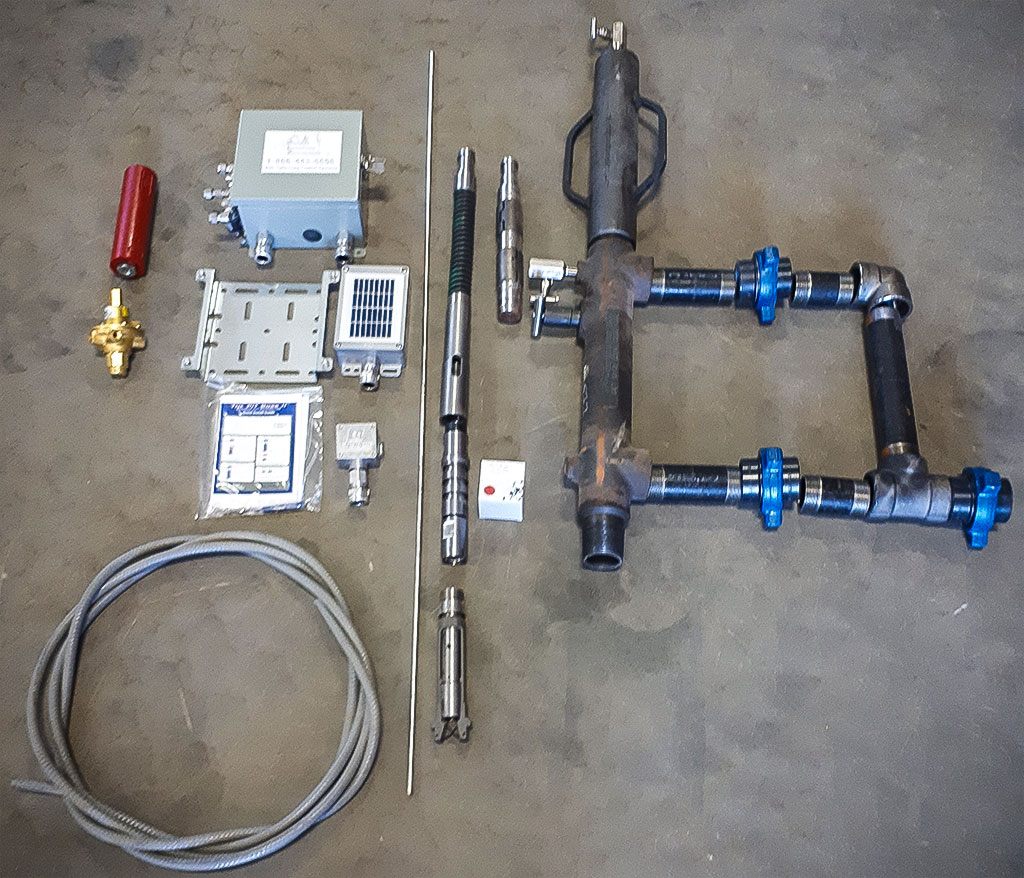

  • Plunger lift equipment laid out before shipping: lubricator, controller, plungers and springs

    Artificial lift

    Plunger lift delivery

    Plunger lift equipment for 3 wells for a European operator.

    • Lubricator, 2-3/8" EUE 3000 psi, forged
    • Plunger lift controller with 2 solenoid valves and solar panel
    • GasMaker dual pad plungers for 2-3/8" tubing
    Delivery details

Request a quote

Send us your well data

Tell us the tools or equipment you need, tubing size, pressure rating, quantity and delivery location, and we will reply with a quote.

Request a quote +359 878 532030
